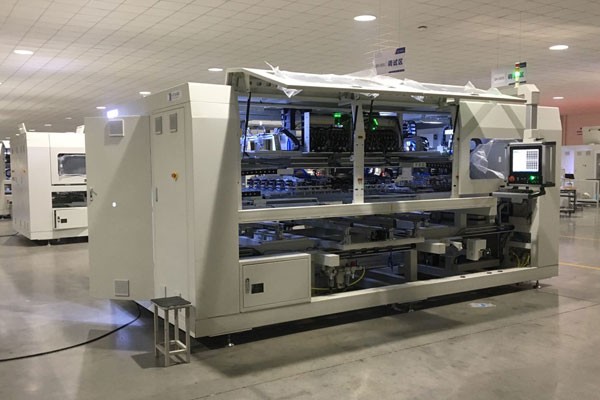

Auto Solar Panel Bussing Machine|Radiant Pv Solar

Description: Automatic bus bar soldering
Capacity:100-500MW/Year
Cell type: 156-210mm 5-12BB
Module type:Whole and half cell
Glass type:L 1630-2200x W 980-1100mm

EMAIL

Auto Solar Panel Bussing Machine|Radiant Pv Solar

            Module layup accuracy

±0.4mm

             Module output height

950±20mm

            Module input deviation

Glass center deviation5mm

              Production speed

 25s

             Soldering method

Induction

          After soldering tension

>7N/mm ,full soldering(180°counter pull)

            Leading wire mode

 Bending plastic

   Leading wire angle and deviation

 90°±2~5°

              Breakage rate

0.5‰

               Cell types

Standard (156,156.75)/5BB,(158.75,161.75,166,170mm)/(9,10,12BB) for

selected

                 Glass types

 L(1630-2200mm)x W(980-1100mm)

               Ribbons types

Roll,automatic cutting,thickness 0.18-0.40mm,width 4mm,5mm,6mm,8mm,roll weight≤12kgs


Features:

1.The whole machine is compatible with full cell, half cell, double glass modules, compatible with multiple grids after replacing tooling;

2.Automatically completes cutting, bending and interconnection soldering of solar module ribbons;

3.To effectively rectify cell strings, avoid soldering defects caused by large layup accuracy error;

4.Ribbon roll feeding,automatically prepare upfold L type ribbon;

5.The flux can be automatically filled between the ribbon and busbar before soldering;
